Features
Discrete, random access, fully automated
Up to constant 180 tests per hour
Optional for external bar code reader
30 positions for samples and 60 positions for reagents
Automatic probe cleaning, liquid level detection, collision protection
Reversed optic system with 8 wavelengths
Refrigerated reagent and sample compartment
Analysis system
Working mode: Discrete/random access
Test speed: test speed 180T/H (without ISE)
Test principle: Absorbance photometry, Turbidimetry
Methodology:End-point, Fixed-time, Kinetic, Single/Dual reagent chemistries, monochromatic/bichromatic Linear/non-linear multi-point calibration
The longest reaction time: 15 minutes
Minimum reaction volume: 150μl
Cuvettes material: plastics (quartz glass can be selected), 81 cuvettes have the function of automatically deducting reagent and sample blanks
Linear range of absorbance: 0-3.8Abs
Halogen light source using time ≥ 2000 hours
Wavelength:340nm、405nm、450nm、510nm、546nm、578nm、630nm、670nm
Refrigeration system: water medium uniform refrigeration technology
Reagent storehouse temperature: 4-16℃
Reaction temperature: 37±0.2℃
Temperature fluctuation: ±0.1℃
Sampling and mixing system
Sample capacity: 2-30μl, 0.1μl increasing

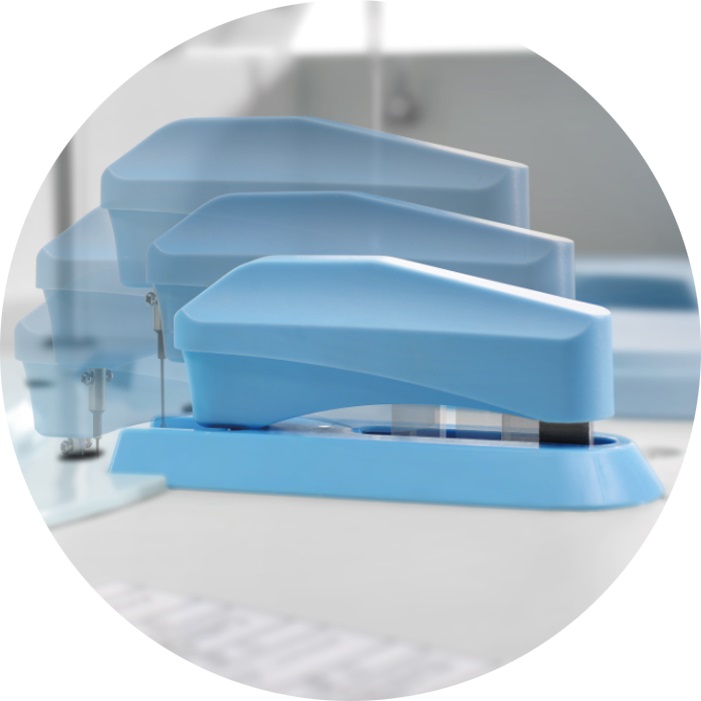

Sample probe:The inner and outer walls are highly polished,
with the function of liquid level detection, tracking and collision protection,
sample probe matching special cleaning liquid,prevent cross contamination
Reagent capacity:2-300μl, 0.1μl increasing
Reagent probe:Sharing with the sample probe
Reagent bottle:Reagent bottles with volume of 15ml、 20ml、 30ml、 50ml、 60ml 、 70ml can be used, the dead volume is less than 1ml
Mixing bar:Independent mixing bar, special material, surface treatment using Teflon, not hanging liquid, thoroughly clean before and after mixing to prevent cross contamination
Reagent/sample Handing

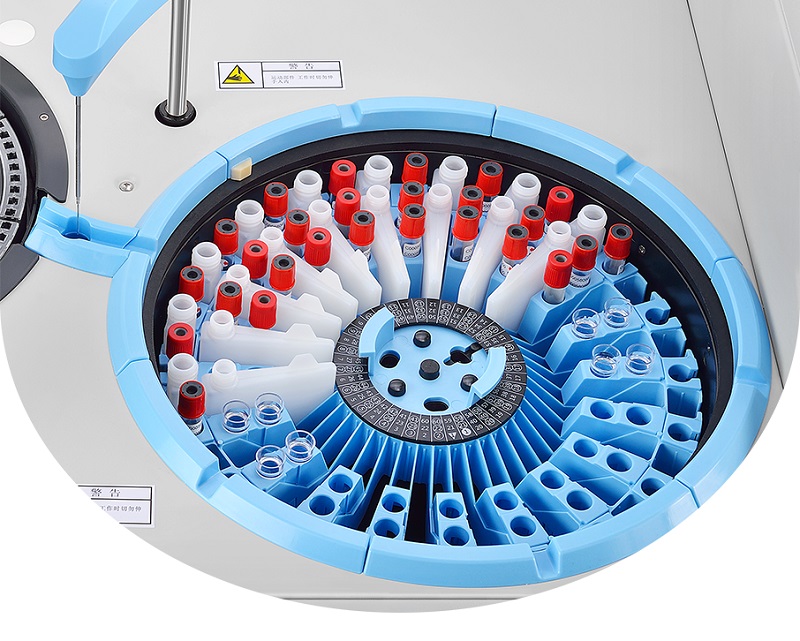

Reagent/sample tray: 30 positions for reagents and 60 positions for samples in refrigerated compartment (4~16℃)
Reagent volume:20-500μl,step by 1μl
Sample volume:2~100μl,step by 0.1μl
Reagent/Sample probe:Liquid level detection,collision protection and inventory checking
Probe cleaning:Automatic washing for both interior and exterior Carry-over < 0.1%
Calibration and quality control
Quality control type:real time quality control, daily quality control, day to day quality control
Quality control charts L-J, Cumulative, Twin Plot
The quality control rules are arbitrarily formulated by default to Westguard multiple rules
The calibration type : linear and nonlinear. Logit-4P, Logit-5P, Spline, exponent, polynomial, factor method
Automatically check the calibration curve and select the best calibration type of the fitting degree automatically
Operating System
English operating system: Windows2000、windows XP、windows7、windows8、windows10
