Specifications

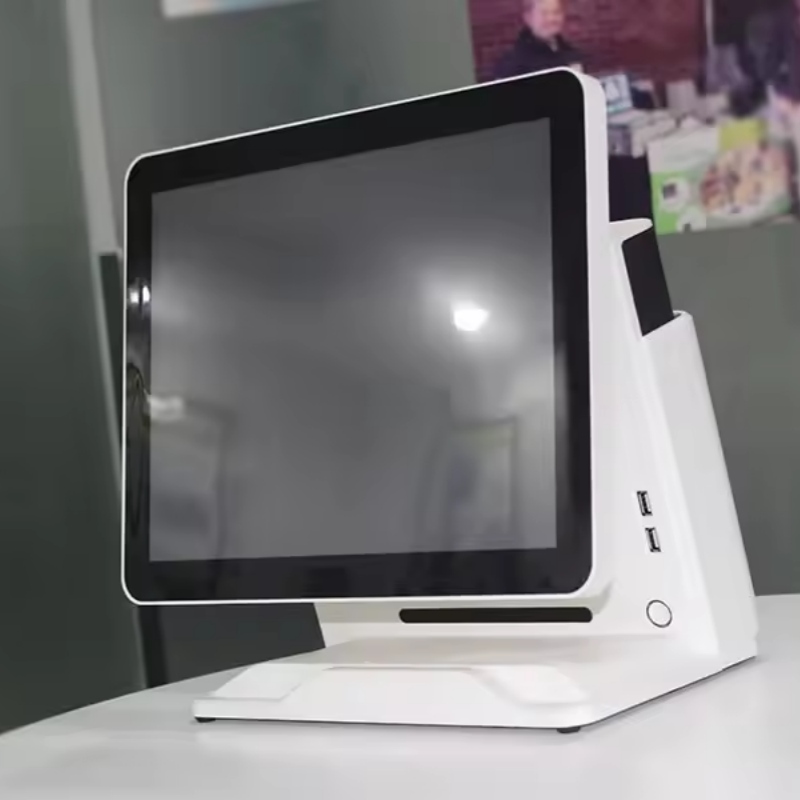

| Display | 15"LCD Touch Screen |
| Imaging mode | B, B+B, B+A, A |
| Hint | Preset keyword |
| Case Search | Multi-keywords |
| Battery life | 4 hours |
| A Scan | Frequency:10MHz, with LED Depth: 40mm Precision:±0.05 mm Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average Eye mode: Phakic / Aphakic / Dense / Various IOL IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS Stat. Calculation: Average and standard deviation Store: 10 Scanning results for each eye |

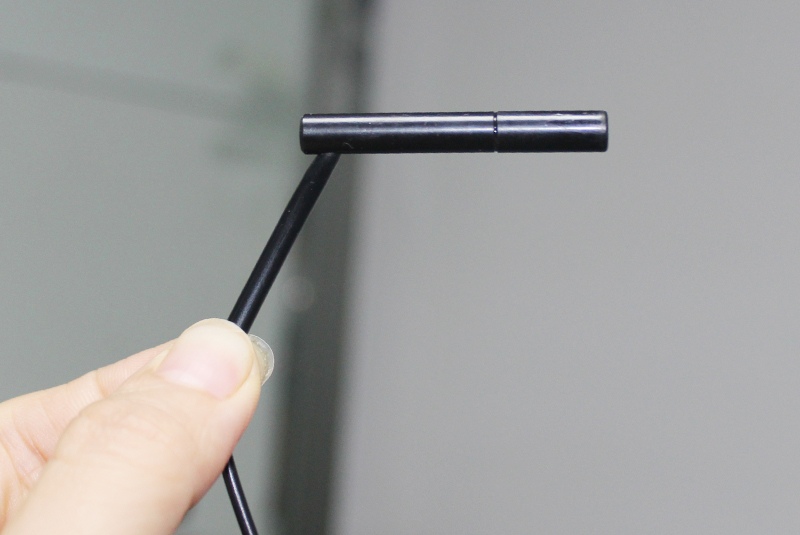

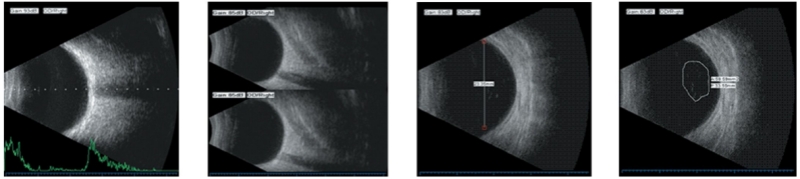

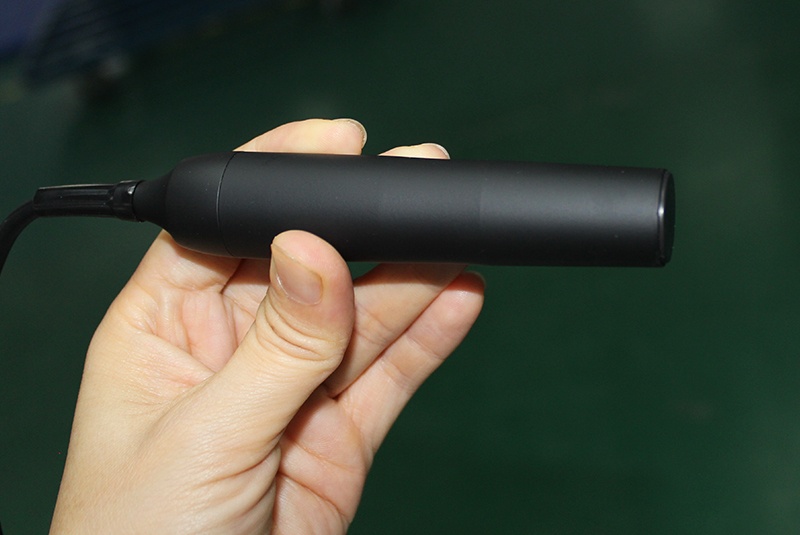

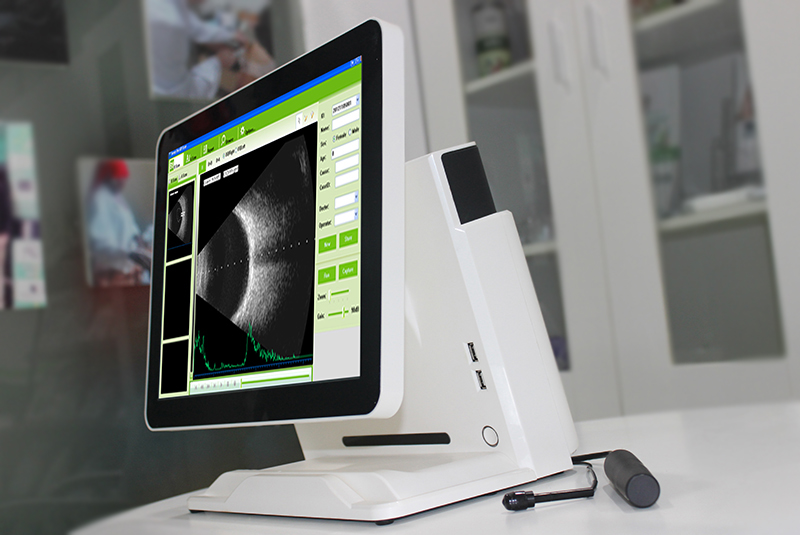

| B Scan | Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless Scanning Mode: Sector Scanning Magnify:Multi continuous magnification,Real-Time magnification Resolution: Lateral ≤0.3mm; Vertical≤0.2mm Geometry position precision: Lateral ≤10%; Vertical≤5% Depth:60mm Enhance the part of vitreous body and retina Gain of probe:30dB-105dB Scanning Angle:53° Gray Scale: 256 False Color: Multi colors. OCT measurement type: multigroup distances, perimeters and areas Image postprocessing: multiple curves processing, Pseudo-color processing curve Movies: 100 images movie review, AVI JPG format image output |
