Portable Ultrasound B Scanner Box

  • Model No : ZM-U140
  • Features : PC Based Ultrasound Box

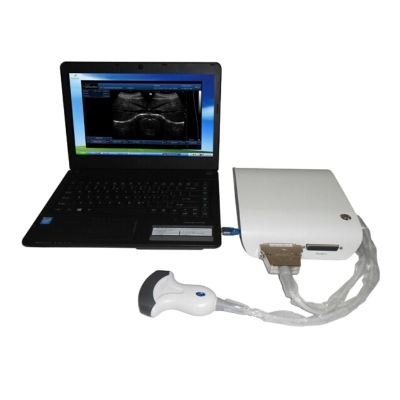

This Ultrasound Box is easy to use, only need to connect it to computer by USB cable and install the software in the computer.It will work as a computer based ultrasound B Scanner.

Enpowered by software you can define your own computer keyboard keys to a certain function button. Such as the "Space" key can be defined as "Freeze" button, the "+" and "-" can set to value increase and decrease, all by your define.

An ultrasound keyboard is optional.

Feature

  • Work with your own computer, cost-saving

  • Small and light

  • PC based, powerful function, large volume storage

  • Full digital, clear image

  • 3D image function(option)

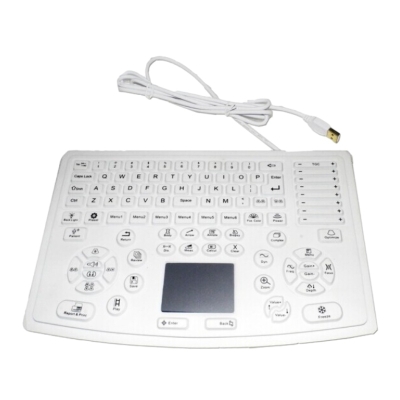

  • Silica gel waterproof ultrasound keyboard(option)

  • Print by computer's USB laser/inkjet printers

  • Can work with external battery(option)

  • Multiple language:  English, French, German, Spanish,  Russian, Italian, Portuguese, etc.

Specification

  • Operation system: Windows

  • D-Maximum Scanning Depth: max. 250mm

  • Multi-frequency: 5 segment frequencies

  • Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0

  • Image gray scale: 256 level gray scale

  • Cine Loop::max. 1024 frames

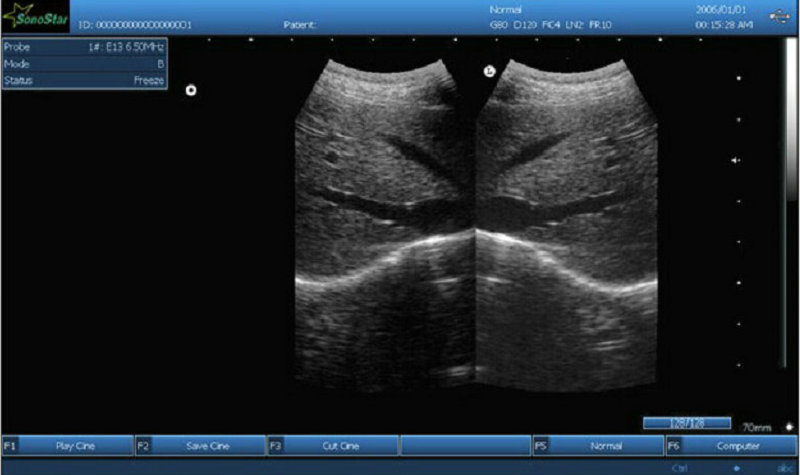

  • Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode)

  • Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;

  enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.

  • Measurement and calculation(human):

    B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;

       M mode: heart rate, time, distance, slope and stenosis;

       Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;

       Obstetric: gestation age, fetal weight, AFI;

       Cardiology: LV, LV function, LVPW, RVAWT;

       Urology: transition zone volume, bladder volume, RUV,   prostate, kidney;

       Small parts: optic, thyroid, jaw and face.

  • Measurement and calculation(veterinary):

       Cattle: BPD, CRL, TD;

       Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD

  • Image store: by computer hardisk or USB disk

  • Print: by USB laser/inkjet printers with computer

  • DICOM3.0, medical digital imaging and communication

  • 3D image function(function): can get rebuilt 3D image by any probe

  • Dimension: 230mm×200mm×64mm

  • Weight: with one probe around 1.2kg

  • Work time by battery(optional): about 3 hours

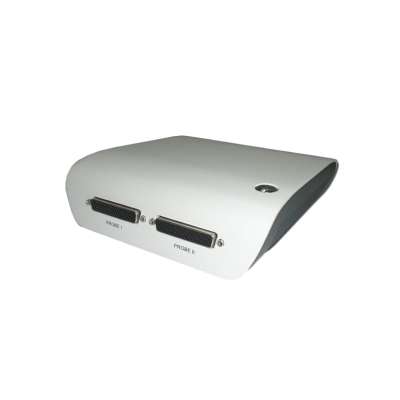

  • Probe Connector::2

Standard Configuration

Ultrasound Box, USB connect cable, Convex probe(R60, 3.5MHz), Power adapter, CD with ultrasound software, Manual

Optional

Linear, Trans-vaginal, Micro-convex, Rectal Probe; Ultrasound keyboard; Computer; Battery; Bag
