- Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
- Update 255 hour historical data replay on PC through USB
- Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
- Suitable for clinical and emergency circumstance
- SpO2, SpO2+CO2 selectable
- Professional Data Analysis Software for CO2 Monitoring
- Connecting the palm monitor to PC through USB
- Storing Unlimited patients data
- Displaying ETCO2，SPO2 Trends Table
- Controlling PC printer, outputting trend graph, trend table report
- Recording and storage object’s respiration details in clinical
Main Unit's Environment Requirement
Working: Temperature: 5℃~50℃;
Relative humidity: 0~95%;
Atmosphere Pressure: 70.0KPa~106.0KPa
Storage: Temperature: 0℃~70℃;
Relative humidity: 0~95%;
Atmosphere Pressure: 22.0KPa~120.0KPa
LED
Patient Alarm Indicator: Two colors: Yellow and Red
Sound Indicator
Loudspeaker: Play alarm voices

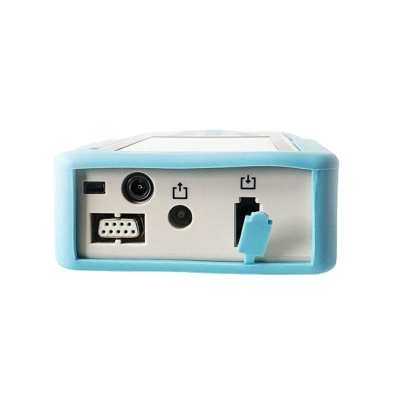

Interfaces
Power: 12VDC power socket x 1
USB: MINI USB socket x 1
Measurement Specification
Principle: NDIR single beam optics
Sampling Rate: 90mL/min, ±10mL/min
Initialization Time: Waveform displaying in 20 seconds
Range
CO2: 0~99 mmHg, 0~13 %
N2O: 0~100 VOL%
ISO: 0~6VOL%
ENF: 0~6VOL%
SEV: 0~8VOL%
RR: 2~150 bpm
Resolution
CO2: 0~40 mmHg ±2 mmHg
40 ~99 mmHg ±5% of reading
N2O: 0~100VOL%
±(2.0 vol% +5% of reading)
ISO: 0~6VOL%
±(0.3 vol% +2% of reading)
ENF: 0~6VOL%
±(0.3 vol% +2% of reading)
SEV: 0~8VOL%
±(0.3 vol% +2% of reading)
RR: ±1 bpm
Apnea Alarm Time: 20~60s
MAC value defines
1.0MAC: under an atmospheric pressure condition, give a person or animal skin stimulation, 50% of people or animals not body dynamic response or escape reflection occurs, the inhalation anesthetics in alveolar concentration.
To achieve 95% of people don’t respond to stimuli, the MAC value should reach to 1.3.
When MAC value is 0.4，most patients will wake up.
Anesthetic agents
Enflurane: 1.68
Isoflurane: 1.16
Sevoflurane: 1.71
Halothane: 0.75
N2O: 100%
Notice Desflurane’s MAC1.0 values differ with age
Age: 18-30 MAC 1.0 7.25%
Age: 31-65 MAC 1.0 6.0%
Power Specification
Input Voltage: 12V DC
Input Current: 2.0 A
Physical Specification
Main Unit
Weight: 0.65Kg
Dimension: 192mm x 106mm x 44mm
Hardware Specification

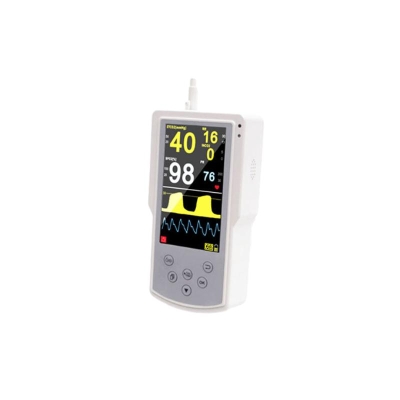

TFT Screen
Type: Colorful TFT LCD
Dimension: 5.0 inch
Battery
Quantity: 4
Model: Rechargeable lithium battery
Voltage: 3.7 V
Capacity: 2200mAh
Working time: 10 hours
Recharging time: 4 Hours
Standard accessories
CO2 Sample Line ......... 1Pcs
Nasal Tube .................1Pcs
Water-trap Column .........1Pcs
Airway Adapter ............. 1Pcs
Power Adapter ..............1Pcs
