- Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
- Update 255 hour historical data replay on PC through USB
- Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
- Suitable for clinical and emergency circumstance
- SpO2, SpO2+CO2 selectable
- Professional Data Analysis Software for CO2 Monitoring
- Connecting the palm monitor to PC through USB
- Storing Unlimited patients data
- Displaying ETCO2，SPO2 Trends Table
- Controlling PC printer, outputting trend graph, trend table report
- Recording and storage object’s respiration details in clinical
TFT Screen
5.0 inch Colorful TFT LCD
LED
Patient Alarm Indicator
Two colors:Yellow and Red
Sound Indicator
Loudspeaker Play alarm voices

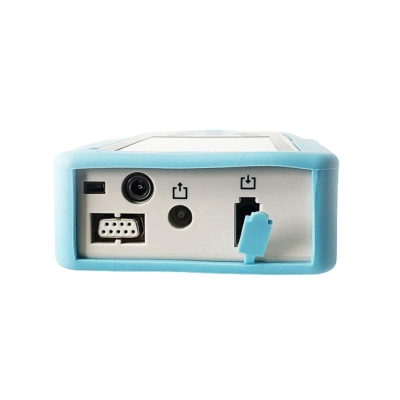

Interfaces
Power 12VDC power socket*1pc
USB MINI USB socket*1
CO2
Principle NDIR single beam optics, dual wavelength, no moving parts.
Sample Rate 50mL/min, ±10mL/min
Initialization Time In 5 seconds,display the CO2 scan wave
Range CO2
0~99 mmHg
0~13 % Respiratory Rate
2~150 bpm
Resolution CO2
0.1 mmHg 0 ~ 40 mmHg
0.25 mmHg 40 ~ 99 mmHg
Respiratory Rate
1 bpm
Precision CO2
0~40 mmHg ±2 mmHg
40 ~99 mmHg ±5% of reading
Respiratory Rate
±1 bpm
Apnea Alarm Time 10~60s
SpO2
Measure Range
SpO2 0 - 100 %
Pulse rate 35 - 254 BPM
Measure Accuracy
SpO2 ±2% (70 - 100%)
Pulse rate :±2 or ±2 BPM
Battery
Quantity 4
Model Rechargeable lithium battery
Voltage 3.7 V
Capacity 2200mAh
Working time 10 hours
Recharging time 4 Hours
Standard accessories
CO2 Sample Line ......... 1Pcs
Nasal Tube .................. 1Pcs
Power Adapter .............. 1Pcs
Water-trap Column ......... 1Pcs
Airway Adapter ............. 1Pcs
